Water Spray Retort for Glass Jar Chili Sauce

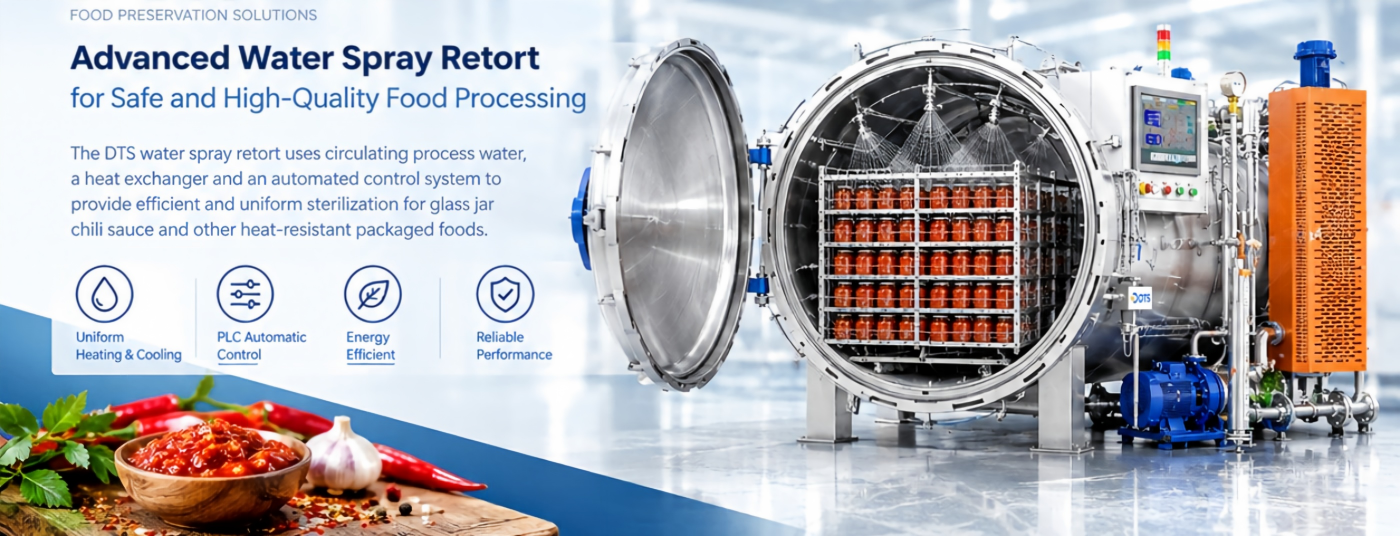

DTS water spray retorts are designed for thermal processing of food products in a range of heat-resistant packaging formats, including plastic containers, pouches, metal cans, and glass jars.
For glass jar chili sauce, the sterilization process needs to balance microbial control, packaging integrity, and product quality. Choosing the right retort involves more than setting a target temperature. Product heat penetration, pressure changes inside and outside the jars, and the total processing cycle must also be considered.
How Does a Water Spray Retort Work?
1. Loading: Arrange the Glass Jars
Filled and sealed glass jars of chili sauce are loaded into sterilization baskets and transferred into the retort chamber according to the loading requirements. Proper basket arrangement allows the process water to circulate around the jars and helps reduce unnecessary contact between containers.
2. Heating: Distribute Hot Water Evenly
During the heating stage, process water is heated through a heat exchanger and distributed throughout the retort by a spray system. The circulating hot water transfers heat to the products, while the control system follows the programmed heating profile.
The required sterilization conditions depend not only on the retort temperature but also on the sauce viscosity, particle size, filling weight, and jar dimensions. Heat penetration testing is therefore needed to identify the product cold spot and establish suitable processing parameters.
3. Holding: Control Temperature, Pressure, and Time
Once the product reaches the required processing stage, the PLC control system manages temperature, pressure, and holding time according to the validated process recipe.
The aim is to achieve the required thermal treatment without unnecessary heat exposure. Different chili sauce formulations and glass jar specifications may require different processing parameters, so the sterilization cycle should be established for the actual product and packaging.
4. Cooling: Help Protect the Glass Jars
After the required thermal treatment, the retort cools the products according to the defined process. The spray system and heat exchanger work together to control the cooling stage and manage temperature changes.
For glass jar packaging, cooling conditions, pressure differences, and closure integrity all require attention. Whether counterpressure is needed, and how it should be controlled, depends on the jar design, closure system, and packaging pressure resistance.
5. Unloading: Prepare Products for the Next Stage
After sterilization and cooling are complete, the jars are unloaded according to the operating procedure and transferred for inspection, labeling, packing, or other downstream operations.
Proper basket handling, loading and unloading arrangements, and batch cycle planning help coordinate the retort with the rest of the production line.
Selecting a Water Spray Retort for Chili Sauce
The appropriate retort configuration depends on the glass jar dimensions, filling weight, product characteristics, and target production capacity.
DTS can assess these requirements to help determine a suitable water spray retort configuration, loading arrangement, and thermal processing approach for glass jar chili sauce production. A properly designed and validated process helps manufacturers manage sterilization requirements, packaging integrity, and production efficiency.
